Creating & Pursuing
Future Value for clients
through engineering excellence

One of the highlights of our brand is that we apply the Six Sigma principle in our manufacturing facility and this is what makes us stand apart in terms of quality. We are among the market leaders when it comes to manufacturing of single core Armored/Unarmored cables up to nominal core sectional area of 1000mm². multi core cables, armored/Un-armored cables up to 61 wires/cores & heavy duty power cables up to 3.5/4 core x 400 mm². We can offer the cables with various types of insulation and outer sheath compound like PVC, HR-PVC, FRLS-PVC, FR-PVC, XLPE & complete range of Aerial Bunched Cable as per the customer requirements/specifications, confirming to IEC and British Standards.

Having a manufacturirg facility certified as per ISO 9001-2008 guidelines and accredited by KVQA Pasondia lakes pride in the fact that it maintains high standards of quality and integrity in its manufacturing of cables.

The plant is fully equipped with latest state-of-the-art technology that includes latest machinery and computerized testing equipment for carrying out various tests from raw material to finished goods to meet the desired standards. The internal quality department strives to achieve the highest quality in this whole cycle till the finished goods are dispatched. The oroducts are tested by some of the leading and the most reputed testing laboratories in India - ERDA. CPRI, RTC, NTH etc.

Cable Manufacturing
Process
The Wire Drawing process that we incorporate helps us draw the wires as per the requirement in the Wire Drawing Machine
In the Annealing process, the Tandum Machine is used to anneal intermediately drawn copper wires together

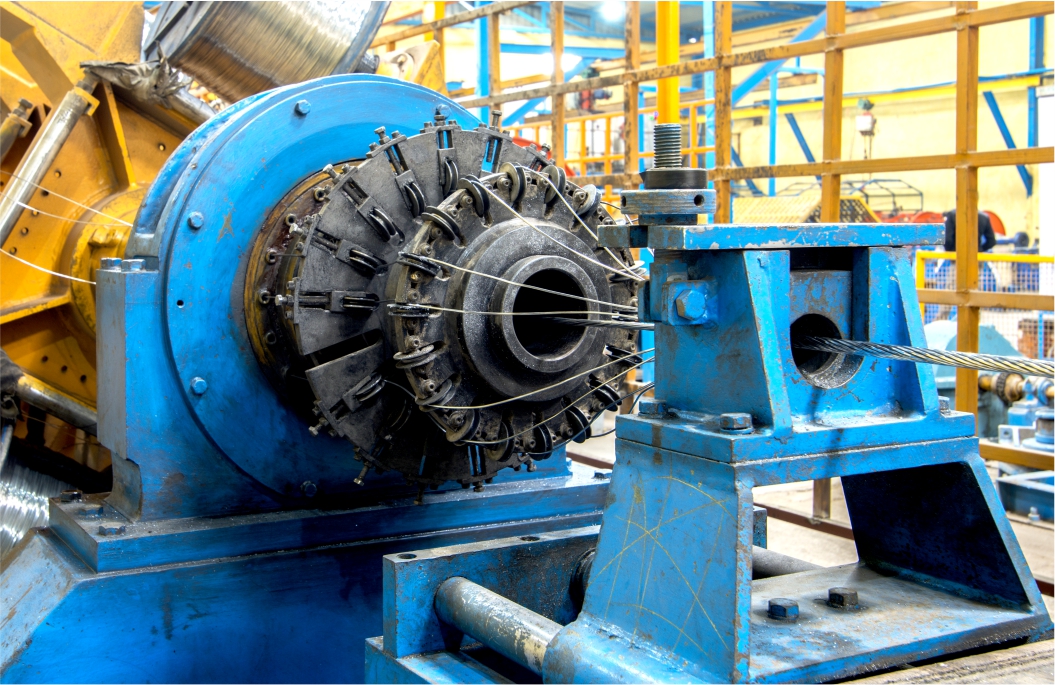

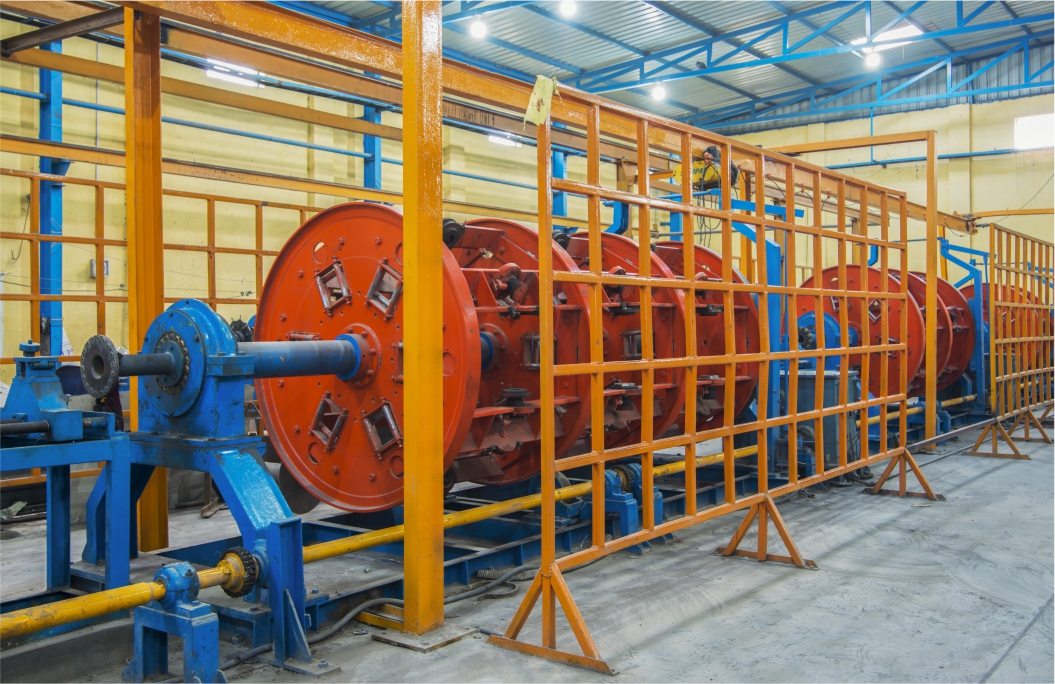

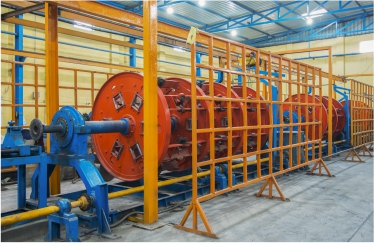

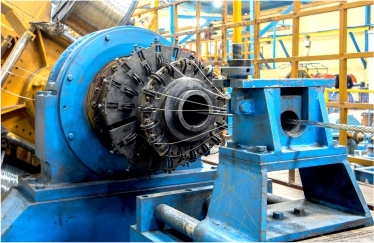

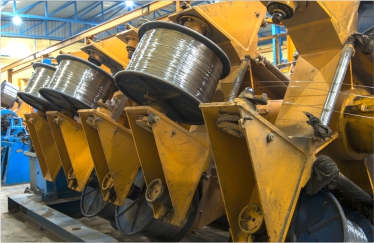

Stranding Machine is used to manufacture a specific design of the required conductor size
The Insulation process involves insulation of the conductor in XLPE, PVC, HDPE as per the required specification
The Core Rewinding and Curing process involves spark testing of the cores and re-wounding and curing as per requirement

We deploy more than 12 'Type' tests which include Tensile Test (for Aluminium Conductors). Wrapping Test (for Aluminium Conductors). Annealing Test (for Aluminium Conductors, Conductor resistance Test, Test for Armour Wire/Strips, Test for thickness of insulation and sheath, Physical Test for Insulation and Outer Sheath. Test for bleeding and blooming of pigments, Insulation Resistance Test, High-Voltage Test, Flammability Test, Hot Set Test (for XI PE Insulation only). Water Absorption Test (for XLPE cable)

Our Acceptance Tests include almost 10 types of tests including Tensile Test (for Aluminium Conductors), Wrapping Test (for Aluminium Conductors). Annealing Test (for Aluminium Conductors), Conductor Resistance Test, Test for Thickness of Insulation & Sheath, High Voltage Test, Insulation Resistance Test, Tensile Strength and Elongation at break test, Hot Set Test.

Apart from that we deploy 3 types of Optional Tests and 10 different types of Special Tests.
The routine tests include: Conductor Resistance Test and High Voltage Test.
